USB Connector Types: Match the Plug to the Port

Matching USB connector types starts with the shape at each end of the cable. Check the computer's port and the device's socket separately, then confirm the cable supports the required data, charging or display function.

A plug that fits can still be wrong for the job. USB-C identifies a connector shape; it does not by itself promise a particular transfer speed, laptop charging or video output.

Identify both ends before choosing a cable

Read the device manual's connection diagram and compare the socket with the cable ends. Many useful cables deliberately have different connectors at opposite ends, such as USB-A at the computer and USB-B at a printer.

The shapes are documented by the vendor, Cable Matters, in its connector guide. Use the shape and device specification together rather than judging by a port's color.

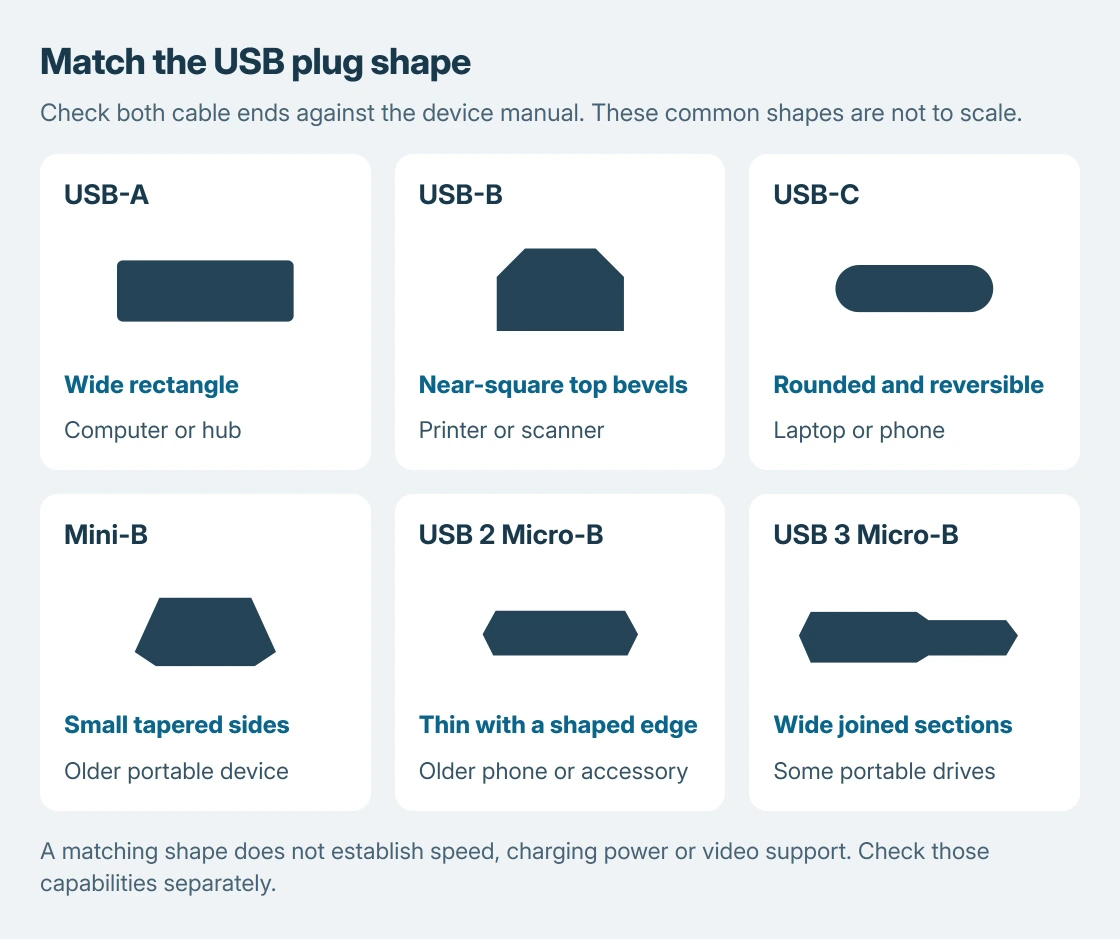

USB connector identification drawing: rectangular USB-A, near-square USB-B, rounded USB-C, tapered Mini-B, thin Micro-B and the wider double-section USB 3 Micro-B shape

Status: USB-IF connector guidance, cable-maker references and Microsoft's USB-C troubleshooting checked October 25, 2026. These are identification drawings; no cable or device was tested.

ConnectorShape to compareTypical place to check
USB-AWide rectangle, one insertion orientationComputer, charger or hub
USB-BNearly square, with angled upper cornersPrinter, scanner or audio device
USB-CSmall rounded opening, reversibleRecent laptop, phone or peripheral
Mini-BSmall, tapered body, thicker than Micro-BOlder camera or portable device
USB 2 Micro-BThin, flattened body, one orientationOlder phone or accessory
USB 3 Micro-BWide body with two joined sectionsSome portable hard drives

These examples are identification aids, not a complete port inventory. USB 3 Type-B is also taller than the older Type-B shape. Match the full connector rather than forcing a similar-looking plug.

For a printer, consult the model's setup diagram. The Brother computer-connection guide separates its USB connection from its wireless setup.

Distinguish Mini-B from the two Micro-B shapes

Mini-B and Micro-B are separate connectors, even when both appear in listings described as a small USB cable. Compare the complete end profile with the device manual rather than ordering by that description alone.

Mini-B has the thicker tapered profile shown in the drawing. USB 2 Micro-B is flatter. USB 3 Micro-B adds a second joined section, giving it the wide profile seen on some external drives.

Check the full product description, including both cable ends. A USB-C laptop connected to a Micro-B drive needs the appropriate device end; two USB-C plugs do not solve that physical mismatch.

For an older camera with an unfamiliar socket, use the camera's model-specific connection chapter. Some devices use proprietary data or remote-control ports that should not be identified as USB merely because they are small.

A Nintendo 3DS also needs its own charging connector; check its adapter and charge lamp before trying a similar-looking USB plug.

Confirm the function before connecting

Microsoft says the computer, cable and accessory must support the same USB-C features in its USB-C connection guidance. Shape matching is the physical check, not a feature certification.

A Switch can accept a USB-C plug and still need its own adapter and dock checks to charge correctly.

Before choosing between cables that fit, read the required power, data rate or display capability in the device documentation. The USB port capability guide covers those separate checks and Windows' connection messages.

With a Pixel and HiBy player, the R1 USB-role check separates a suitable cable from the player's host or Device setting.

A connected headset that stays silent on Linux needs antiX audio-card and mixer checks after the physical connection is confirmed.

The selection rule is ours: identify the two sockets first, then verify the needed function. That avoids replacing a working device because the spare cable was intended for a different job.

Stop if the connector needs force

USB-A, USB-B, Mini-B and Micro-B are shaped for a particular orientation. Turn an unplugged cable to compare its shape before trying again. USB-C is reversible, but a damaged plug or obstructed socket can still fail to seat.

Disconnect a connector that is bent, loose or visibly damaged and ask the device maker about repair. A replacement cable is appropriate for a damaged cable end; it cannot repair a broken socket on the computer.

The Short Version

Match the sockets at both ends, then check data, power and video support separately. USB-C fit alone does not establish those features. Use the device manual and a known-compatible cable to settle a connection that fits but fails.
